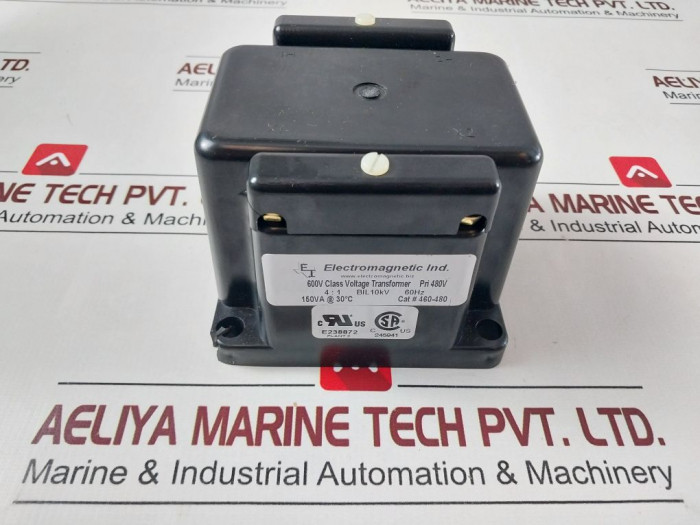

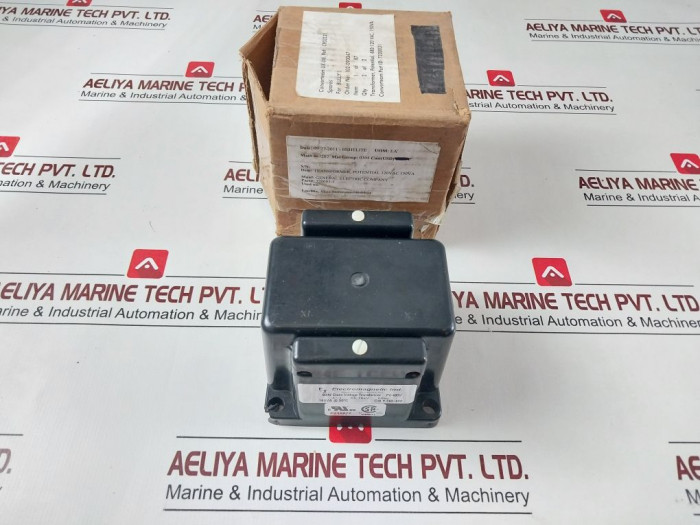

The Electromagnetic 460-480 Potential Transformer, type 720003-1, is made by the Converteam Group Sas and General Electric Company. They are designed in the highest quality with a primary voltage rating of 480V. They come with a 4:1 ratio, with a level of 10 kV BIL protection for forming high voltage conditions. The transformer has a rating of 150 VA at 30°C and can operate at 60 Hz. They are well designed to utilize in industrial applications. E238872 compliant, this device is built to standard industry measures and its lightweight nature weighing 3.680 kg keeps the installation and usage process hassle-free. 1. Voltage Class: This product is high voltage transformer class 600V designed for industrial service. 2. Primary Voltage: This is 480 V with a ratio of 4 : 1 to provide efficient voltage transformation. 3. BIL Rating: High level of insulation and safety is achieved with this 10 kV under surge condition. 4. Power Rating: It provides satisfactory performance in the condition of power supply variation at 150 VA at 30 degree. 5. Frequency: This is 60 Hz with a suitable electrical system. 6. Certification: This product is certified under E238872 having high standards to ensure working safety and quality. 7. Compact Design: The product only weighs 3.680 kg, light weight and easy to install. 8. Cross Reference: Available with cross reference number Cp03331 for compatibility. 9. Reliability: It is made by Converteam Group Sas and General Electric Company, who are worldwide recognized manufacturers that guarantee performance for a long time. 1. Voltage Measurement: Applied where there is a chance of high electrical voltage, which calls for a measurement of the voltage levels. 2. Industrial Power Systems: They apply in industrial areas in the monitoring and control of power for the distribution of electricity. 3. Electrical Protection Systems: Aids relays to detect abnormal voltage levels and activate the safety device. 4. Power Generation: In power generating plants for regulating the voltage and guarding equipment. 5. Substations: They apply in sub-stations, where large amounts of high-voltage electricity are required to be transformed into lower, easier to handle levels for usage and safety. 6. Energy Management Systems: It provides control and monitoring integrated with energy management systems to optimize or monitor electrical load. 7. Utility Grid Monitoring: Important for utility companies to track voltage levels in the grid. 8. Transformer Testing: Helpful for testing and maintaining other transformers by providing a reference voltage. Find reliable Potential Transformers at Aeliya Marine for accurate voltage monitoring and performance.
